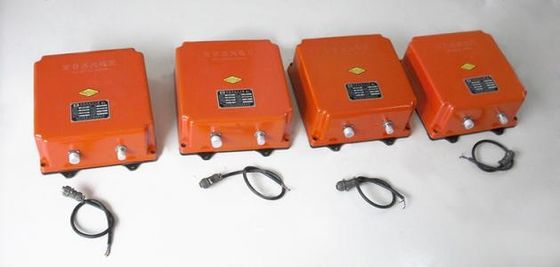

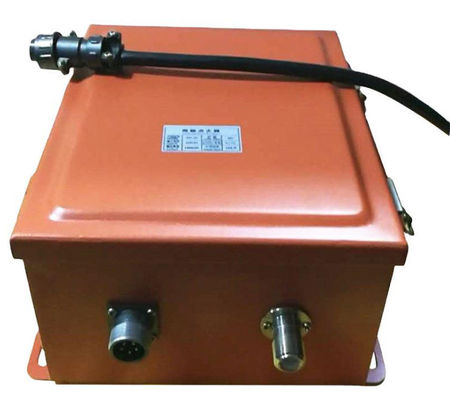

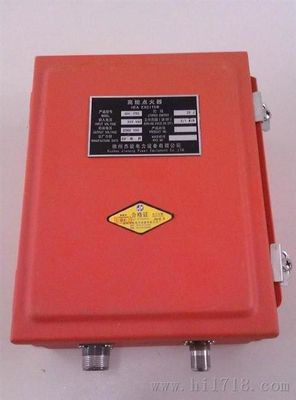

XDH series XDH-20C High-Energy Ignition Device AC 220V XDZ-1 ignite rod spark rod high voltage cable

XDH series XDH-20C High-Energy Ignition Device AC 220V XDZ-1 ignite rod spark rod high voltage cable

  • XDH series XDH-20C High-Energy Ignition Device  AC 220V XDZ-1 ignite rod  spark rod  high voltage cable
  • XDH series XDH-20C High-Energy Ignition Device  AC 220V XDZ-1 ignite rod  spark rod  high voltage cable
  • XDH series XDH-20C High-Energy Ignition Device  AC 220V XDZ-1 ignite rod  spark rod  high voltage cable
  • XDH series XDH-20C High-Energy Ignition Device  AC 220V XDZ-1 ignite rod  spark rod  high voltage cable
  • XDH series XDH-20C High-Energy Ignition Device  AC 220V XDZ-1 ignite rod  spark rod  high voltage cable
XDH series XDH-20C High-Energy Ignition Device  AC 220V XDZ-1 ignite rod  spark rod  high voltage cable
Productdetails:
Plaats van herkomst: China
Merknaam: OEM
Modelnummer: Xdh-20
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1 reeks
Verpakking Details: Houten doosverpakking
Betalingscondities: T/T
Levering vermogen: 200
Contact
Gedetailleerde productomschrijving
Voltage: 220V±10% 50/60HZ Energie: 20J
Vonkenfrekwentie: 12-14times /S Kadergrootte: 300*200*120

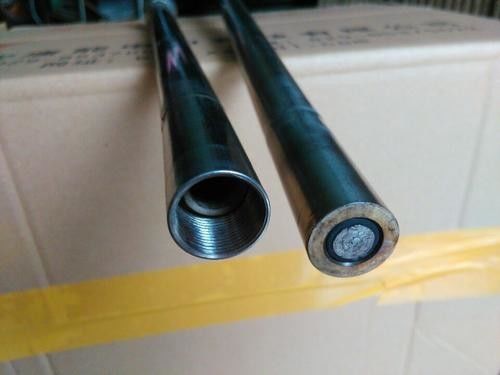

ontstekingsstaaf: M18*1.0 M18*1.5 M27*1.5 Temperatuur: 1300℃
Staafdia: Φ16 Φ18

Portable High Performance Ignition System Hea Box for XDH High-Energy Ignition Device Assembly DC 12V, AC 220V



1,Product Description: use from ignition cable input voltage DC discharge in high energy electric spark forming head

2,Technical advantages and honor- Low ignition voltage;- Good temperature resistance;- Safety and reliability, strong ability to resist pollution


Applications:


    As XDH high-energy ignition device assembly.



Specifications:

Brief introduction

1,Product Description: use from ignition cable input voltage DC discharge in high energy electric spark forming head.
2,Technical advantages and honor
- Low ignition voltage;
- Good temperature resistance;
- Safety and reliability,  strong ability to resist pollution

Applications:

As XDH high-energy ignition device assembly.




Product model and series

1. Product series

Sr.

Model

Description

1

XDH-1G

High pressure gap ignitor

2

XDH-2Z

DC charging portable ignition

3

XDH-6B

explosion-proof high-energy ignition

4

XDH-6L

Portable high-energy ignition

5

XDH-12T

Portable high-energy ignition

6

XDH-20B

explosion-proof high-energy ignition

7

XDH-20C

high-energy ignition

8

XDH-20L

high-energy ignition

9

XDH-50

high-energy ignition

【Note】As the series of products still cannot meet the requirements of users,  according to the demand of design.



1. basic configuration:(leave)

2. Performance parameters



Various types of igniter performance:

Parameter name

Unit

Data

NDH-2Z
ignition

NDH-6 series ignition

XDH- 20 series ignition

XDH-50
ignition

Energy storage

J

2

10

20

50

Working voltage

V

DC12

AC220

Output voltage

VDC



2500±5%

Spark frequency

(Times / sec)

1~3

2~10 Adjustable

7~17

2~10  Adjustable

Duty cycle (on / off)

S

30/60

120/60

300/60

120/60



3. Outline and mounting dimensions   pls contact to confirm
