| Plaats van herkomst: | China |
| Modelnummer: | De Reeks van GT |
| Min. bestelaantal: | 1 set |
|---|---|
| Verpakking Details: | Houten doos verpakking |
| Levertijd: | 15days na het ondertekenen van het contract |
| Betalingscondities: | T/T |
| Levering vermogen: | 1000sets |
| Merknaam: | OEM | Acterentype: | enig of dubbel |
|---|---|---|---|
| Pneumatische aandrijvingen: | AT/GT reeks pneumatische actuators | cilinderblok: | het de cilinderblok van uitstekende kwaliteit van de aluminiumlegering |
| Hoog licht: | Electro hydraulische actuator,elektromagnetische remmen |
||

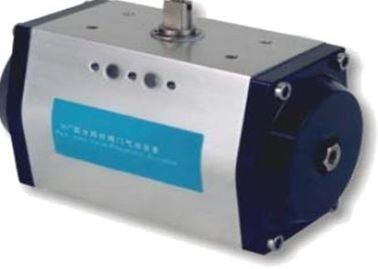

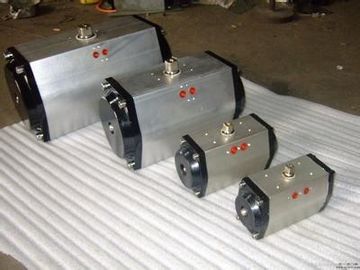

De Klepactuator van GT Pneumatisch Elektrisch Enig Acteren met Vleugelkleppen
pneumatische actuator
Acterentype: enig of dubbel
Roteer hoek: standaard: 90, niet genormaliseerd type: 0-180

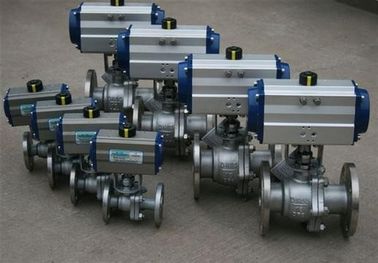

AT/GT de reeksen pneumatische pneumatische actuators van actuators.DA en van SR zijn ontwerp om met Vleugelkleppen en Kogelkleppen te werken
Dubbele actie:
|
Model |
Outputtorsie (N.m) |
|||||
|
0.3MPa |
0.4MPa |
0.5MPa |
0.6MPa |
0.7MPa |
0.8 MPa |
|
|
GT52 |
12.7 |
16.9 |
21.2 |
25.4 |
29.7 |
33.9 |
|
GT63 |
18.7 |
24.9 |
31.1 |
37 |
43.6 |
49.8 |
|
GT83 |
45.4 |
60.6 |
75.7 |
90.8 |
106 |
121.1 |
|
GT92 |
63.8 |
84.8 |
106 |
127.2 |
148.4 |
169.6 |
|
GT110 |
91.2 |
121.6 |
152 |
182.4 |
212.8 |
243.2 |
|
GT127 |
182.4 |
243.2 |
304 |
364.8 |
425.6 |
486.4 |
|
GT160 |
361.9 |
482.4 |
603.1 |
723.6 |
844.2 |
964.8 |
|
GT190 |
754 |
1005 |
1256 |
1507 |
1759 |
2010 |
|
GT210 |
810 |
1075 |
1344 |
1613 |
1882 |
2151 |
|
GT255 |
1654 |
2206 |
2757 |
3309 |
3860 |
4412 |
|
GT300 |
2544 |
3392 |
4241 |
5089 |
5937 |
6784 |
|
GT350 |
4040 |
5387 |
6734 |
8081 |
9428 |
10774 |
Enige actie:
| Model | De lente Qty | luchtdruk (dar) | het de lenteterugstellen | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 4 | 5 | 6 | ||||||||
| begin | eind | begin | eind | begin | eind | begin | eind | begin | eind | ||
| GTE52 | 8 | 11.3 | 4.1 | 15.6 | 8.4 | 19.8 | 12.6 | 12.8 | 5.6 | ||
| 10 | 9.9 | 0.9 | 14.2 | 5.2 | 18.4 | 9.4 | 16 | 7 | |||
| 12 | 14.2 | 2 | 18.4 | 6.2 | 19.2 | 8.4 | |||||
| GTE63 | 8 | 16.6 | 6.1 | 22.8 | 12.3 | 28.7 | 18.2 | 18.8 | 8.3 | ||
| 10 | 14.5 | 1.4 | 20.7 | 7.6 | 26.6 | 13.5 | 23.5 | 10.4 | |||
| 12 | 18.6 | 2.9 | 24.5 | 8.8 | 28.2 | 12.5 | |||||
| GTE83 | 8 | 25.2 | 5.1 | 40.4 | 20.3 | 55.5 | 35.4 | 70.6 | 50.6 | 40.3 | 20.2 |
| 10 | 35.4 | 10.2 | 50.5 | 25.3 | 65.6 | 40.4 | 50.4 | 25.2 | |||
| 12 | 45.5 | 15.2 | 60.6 | 30.3 | 60.5 | 30.2 | |||||
| GTE92 | 8 | 35.5 | 6.8 | 56.5 | 27.8 | 77.7 | 49 | 98.9 | 70.2 | 57 | 28.3 |
| 10 | 49.3 | 11.8 | 70.5 | 33 | 91.7 | 54.2 | 73 | 35.5 | |||
| 12 | 63.5 | 19.8 | 84.7 | 41 | 86.2 | 42.5 | |||||
| GTE110 | 8 | 85.8 | 29.5 | 116.2 | 59.5 | 146.6 | 90.3 | 92.1 | 35.8 | ||
| 10 | 76.8 | 6.4 | 107.2 | 36.8 | 137.6 | 67.2 | 115.2 | 44.8 | |||
| 12 | 98.3 | 13.8 | 128.7 | 44.2 | 138.2 | 53.7 | |||||
| GTE127 | 8 | 105.6 | 19.2 | 166.4 | 80 | 227.2 | 140.8 | 288 | 201.6 | 163.2 | 76.8 |
| 10 | 147.2 | 39.2 | 208 | 100 | 268.8 | 160.8 | 204 | 96 | |||
| 12 | 188.8 | 59.2 | 249.6 | 120 | 244.8 | 115.2 | |||||
| GTE145 | 8 | 135 | 83.7 | 215 | 163 | 269 | 204 | 155 | 103 | ||
| 10 | 189 | 124 | 243 | 165 | 194 | 129 | |||||
| 12 | 163 | 85.7 | 233 | 155 | |||||||
| GTE160 | 8 | 225.1 | 52.3 | 345.6 | 172.8 | 466.3 | 293.5 | 586.8 | 414 | 309.6 | 136.8 |
| 10 | 311.4 | 95.4 | 432.3 | 216.1 | 552.6 | 336.6 | 387 | 171 | |||
| 12 | 277.2 | 18 | 397.9 | 138.7 | 518.4 | 259.24 | 464. | 205.2 | |||
| GTE190 | 8 | 419.2 | 78 | 669.2 | 329 | 920.2 | 580 | 1171.2 | 831 | 676 | 355.8 |
| 10 | 587 | 156 | 837.3 | 407 | 1088.3 | 658 | 849 | 418.7 | |||
| 12 | 753.4 | 241 | 1004.4 | 492 | 1015 | 502.6 | |||||
| GTE210 | 8 | 465 | 309 | 734 | 578 | 917 | 723 | 497 | 341 | ||
| 10 | 648 | 454 | 832 | 599 | 621 | 427 | |||||
| 12 | 563 | 330 | 745 | 512 | |||||||
| GTE255 | 8 | 920 | 185 | 1472 | 737 | 2023 | 1288 | 2575 | 1840 | 1469 | 734 |
| 10 | 1288 | 360 | 1839 | 911 | 2391 | 1463 | 1846 | 918 | |||
| 12 | 1656 | 549 | 2208 | 1101 | 2208 | 1101 | |||||
| GTE300 | 8 | 1416 | 278 | 2264 | 1126 | 3113 | 1975 | 3961 | 2823 | 2266 | 1128 |
| 10 | 1982 | 562 | 2831 | 1411 | 3679 | 2259 | 2830 | 1410 | |||
| 12 | 2549 | 846 | 3397 | 1694 | 3395 | 1692 | |||||
| GTE350 | 8 | 2248 | 450 | 3595 | 1797 | 4942 | 3144 | 6289 | 4491 | 3590 | 1792 |
| 10 | 3147 | 897 | 4494 | 2240 | 5841 | 3591 | 4490 | 2240 | |||
| 12 | 2698 | 17 | 4046 | 1364 | 5393 | 2711 | 5370 | 2688 | |||
Opzettende afmeting:
|
M00 |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
L1 |
m |
z |
N |
O |
P |
Q |
R |
S |
|
50 |
16 |
|
80 |
|
30 |
27.5 |
1/4 ″ |
72 |
20 |
10 |
67 |
194 |
162 |
|
|
M5×10 |
|
36 |
|
M5×7.5 |
|
|
65 |
16 |
|
80 |
|
30 |
27.5 |
1/4 ″ |
88 |
20 |
30 |
82 |
242 |
202 |
0.5 |
54 |
M5×10 |
|
|
70 |
|
M6×8 |
|
80 |
16 |
80 |
130 |
30 |
30 |
27.5 |
1/4 ″ |
102 |
20 |
30 |
98 |
278 |
236 |
0.5 |
54 |
M6×10 |
M×48 |
|
70 |
|
M8×11 |
|
105 |
16 |
80 |
130 |
30 |
30 |
31.5 |
1/4 ″ |
134 |
30 |
30 |
123.5 |
364 |
320 |
0.5 |
54 |
M6×10 |
M×48 |
70 |
102 |
M8×8 |
M10×12 |
|
125 |
22 |
80 |
130 |
30 |
30 |
31.5 |
1/4 ″ |
153 |
30 |
30 |
141 |
442 |
400 |
0.5 |
54 |
M8×12 |
M×48 |
70 |
102 |
M8×8 |
M10×14 |
|
160 |
22 |
80 |
130 |
30 |
30 |
35 |
3/8 ″ |
190 |
40 |
40 |
180 |
520 |
470 |
0.8 |
52 |
M8×12 |
M×48 |
102 |
125 |
M10×12 |
M12×14 |
