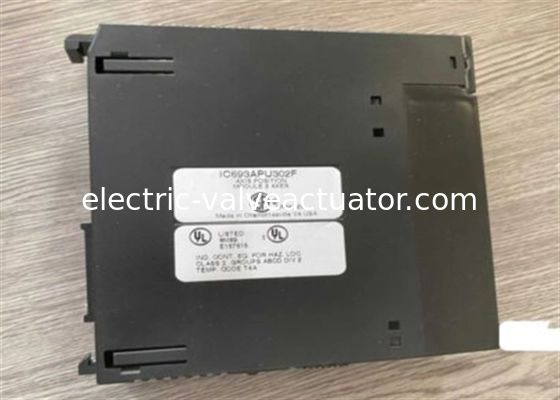

GE FANUC IC693APU302 CPU 313 CPU 323 Three APM Modules CPU 331 Higher Eight APM

Name: GE FANUC IC693APU302 CPU 313 CPU 323 Three APM Modules CPU 331 Higher Eight APM
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: IC693APU302
Price: 210.00 USD
Availability: InStock

Merknaam:	GE
Modelnummer:	IC693APU302
MOQ:	1
Prijs:	Negotiations

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

Productlijn:

Serie 90-30

Huidige trekking:

800 mA @ 5 VDC

Bijlen:

2 as

Verpakking Details:

Nieuwe originele doos

Markeren:

GE FANUC IC693APU302 CPU module

ESP controller with APM modules

CPU 313 CPU 323 industrial controller

Productbeschrijving

GE FANUC IC693APU302 CPU 313 CPU 323 Three APM Modules CPU 331 Higher Eight APM

Technical Specifications

Brand	GE Fanuc
Series	Series 90-30
Product Description	Axis Positioning Module (APM)
Manufacturer	GE Fanuc (Former); Emerson Automation (Current)
Part Number	IC693APU302
No. of supported Axis	Two (2)
Communication Ports	Two (2) Axis module; 25-pin Servo connection
Operating modes	Standard mode; Follower mode
Module LED indicators	EN1, EN2, STST, OK and CFG
Servo Loop Update	2 milliseconds
Slot width	Single slot
Front panel connectors	Two (2) 24-pin axis connectors (A/B); One (1) Communication port
Compatible CPU	CPU 311, CPU 313, CPU 323, CPU 331 and higher
Compatible cables	IC693CBL311 (10 feet/3 meters); IC693CBL319 (3 feet/1 meter); IC693CBL317 (10 feet/3 meters) with an 8" external shield pigtail and IC693CBL320 (3 feet/1 meter) with an 8" external shield pigtail
No. of permitted modules	CPU 311, CPU 313 and CPU 323: Three (3) APM modules CPU 331 and higher: Eight (8) APM modules
Terminal block	Weidmuller RD25 910648 o or equivalent
Current draw	800 mA @ 5 VDC
Product Lifecycle Status	Discontinued/Obsolete

Product Overview

The IC693APU302 is a dual Axis Positioning Module (APM) primarily used as a motion and position control component. This module is capable of controlling Two (2) axes or Two (2) servo motors for implementing simultaneous control of motion and position.

This module is an intelligent module that can be configured to operate in standard and follower mode. With standard mode, the module operates and integrates control with the user logic present in the PLC memory to implement high-performance control. With Follower mode, the module delivers high-performance electronic gearing for master and slave applications.

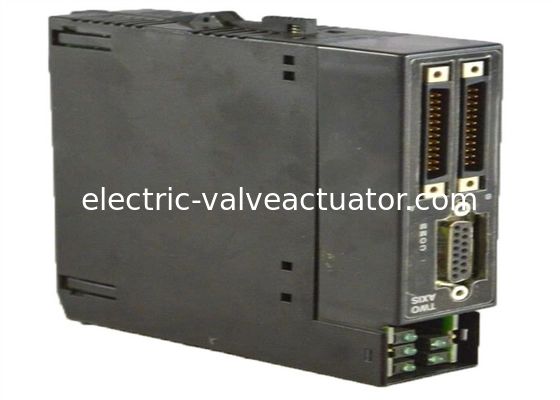

The module's front panel is installed with Two (2) motion axes ports via the 9-pin D-shell connectors and Two (2) 25-pin high-density ports designed to accommodate servo connections. Custom cables may be used to establish a connection to the module however, pre-assembled cables may also be acquired for faster wiring and termination.

Key Features

Fully programmable and intelligent module for advanced logic integration
Compatible with GE Series 90-30 PLCs
Direct communication with machines and control drives
Independent control stability and automatic data transferring
Maximized drive capabilities and improved system performance
Position error measurement and tracking accuracy maintenance
Configurable in standard mode or follower mode (for master/slave applications)
Flash memory stores up to 10 programs and 40 subroutines

Configuration & Programming

The IC693APU302 Axis Positioning Module can be configured and programmed using VersaPro Software or Logic developer-PLC software. The module is downloaded with a configuration that is developed using the Motion programmer software package or the VersaPro software with a minimum software version of 1.1.

The motion configuration software offers a user interface for controlling and monitoring the system effectively, including generic programming commands such as velocity, forward, move, and acceleration/deceleration commands.

Note: This product has been discontinued and is now obsolete. Please verify compatibility with your existing systems before purchase.
