Het Relais van de Bescherming van de transformator

CKSG-146 146A 3 Phase AC Filter Reactor Inductor with Capacitor for Motor Control Cabinet

Name: CKSG-146 146A 3 Phase AC Filter Reactor Inductor with Capacitor for Motor Control Cabinet
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: CKSG-146
Price: 210.00 USD
Availability: InStock

Merknaam:	OEM
Modelnummer:	CKSG-146
MOQ:	1
Prijs:	Onderhandelbaar

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Reactiecoëfficiënt:

0,01

Nominale frequentie:

50 Hz

Diëlektrische sterkte:

0,1 V/m

Kortsluiting sluitstroom:

Piek bestand tegen stroom:

1,3A

Nominale stroom:

10A

Werkspanning:

450V

Isolatiespanning:

3000V

Totaal stroomverbruik:

Spanning hoofdcircuit:

450V

Verpakking Details:

Nieuwe originele doos

Productbeschrijving

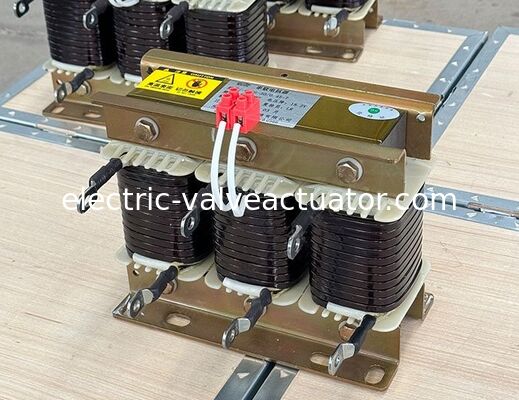

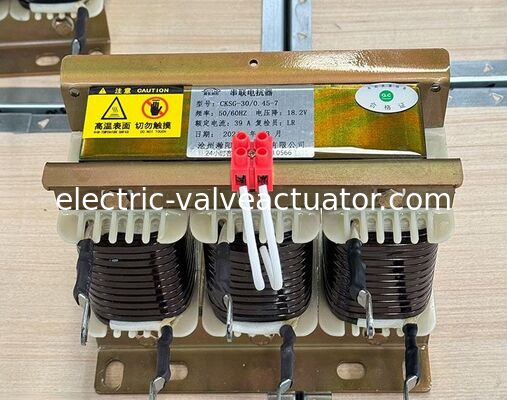

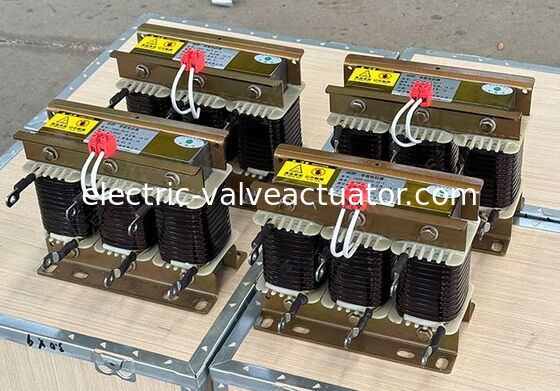

CKSG-146 146A 3 Phase AC Filter Reactor Inductor with Capacitor for Motor Control Cabinet

The CKSG-146 146A Three-Phase AC Filter Reactor Inductor is a high-performance electrical component specifically engineered for motor control cabinets, designed to work seamlessly with capacitors to optimize power quality and protect equipment.

Product Overview

With a rated current of 146A, this three-phase reactor adopts a dry-type, three-column core structure, featuring low loss and stable performance. It is perfectly matched with capacitors to form an efficient filter system, effectively suppressing high-order harmonics (especially 3rd, 5th, and 7th harmonics) and preventing parallel resonance, thus avoiding harmonic amplification and damage to capacitor devices.

Construction & Materials

Core uses low-loss silicon steel sheets with epoxy laminated glass cloth spacers
Ensures no air gap displacement during operation
Low noise operation (≤50dB)
Coil tightly wound with F-class high-temperature enameled wire
High insulation performance with temperature rise limits: ≤95K for coils, ≤85K for cores
Suitable for long-term stable operation

Key Functions

Primary Benefits in Motor Control Applications:

Limits inrush current during motor startup
Buffers voltage spikes and transients from the power grid
Reduces electromagnetic interference (EMI)
Protects motors and drive components from damage
Improves power factor and optimizes grid voltage quality
Extends service life of motor and control cabinet equipment

Technical Specifications

Rated Current: 146A

Phase Configuration: Three-Phase

Construction Type: Dry-type, three-column core

Protection Grade: IP00

Overload Capacity: ≤1.35 times rated current

Noise Level: ≤50dB

Compliance: Relevant electrical standards

Applications

Ideal for industrial automation, motor drive systems, and various low-voltage power compensation scenarios requiring stable power filtering. Features easy installation for seamless integration into motor control cabinets.
