Hua Heng VS-D Low-Frequency Vibration Displacement Sensor with 0.5Hz-200Hz Range and 8mV/μm Sensitivity for Ultra-Low Frequency Measurements

Name: Hua Heng VS-D Low-Frequency Vibration Displacement Sensor with 0.5Hz-200Hz Range and 8mV/μm Sensitivity for Ultra-Low Frequency Measurements
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: VS-D
Price: 1.00 USD
Availability: InStock

Merknaam:	Hua Heng
Modelnummer:	VS-D
MOQ:	1
Prijs:	Onderhandelbaar

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Verpakking Details:

Nieuwe originele doos

Markeren:

0.5Hz-200Hz Vibration Displacement Sensor

8mV/μm Low-Frequency Sensor

Ultra-Low Frequency Inertial Sensor

Productbeschrijving

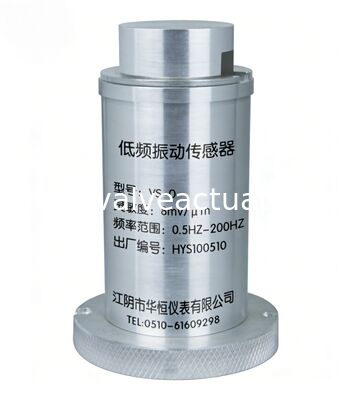

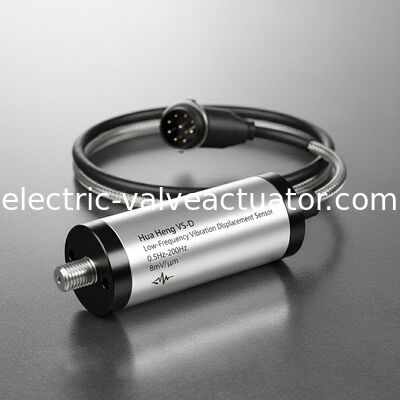

Hua Heng VS-D Low-Frequency Vibration Displacement Sensor

Product Overview

The VS-D low-frequency vibration displacement sensor is an advanced inertial sensor designed for precision measurement applications. Utilizing magnetoelectric induction principles, it converts vibration signals into electrical signals, which are then integrated and amplified to deliver accurate displacement data.

Key Applications

Ideal for: Hydraulic turbine units, low-speed transmission machinery (including coal mills), and engineering structures such as dams and bridges requiring ultra-low frequency vibration monitoring.

Technical Specifications

Frequency Response Range	0.5Hz to 200Hz (-3dB)
Sensitivity	8mV/μm ±5% (customizable per user requirements)
Maximum Measurement Range	±1mm
Output Type	-10V to +10V AC
Amplitude Linearity	<3%
Power Supply	±12VDC
Operating Environment	-30℃ to 100℃, humidity ≤95% (non-condensing)
Weight	250g
Overall Dimensions	Φ66mm × 103mm
Installation Method	Fixed with 2 screws on circumferential angle of Φ56

Key Features

Magnetoelectric induction principle for reliable signal conversion

Integrated amplification circuit for precise displacement measurement

Robust construction with magnetic circuit system and damping spring

Wide operating temperature range for industrial environments

Compact design with straightforward installation Hua Heng VS-D Low-Frequency Vibration Displacement Sensor with 0.5Hz-200Hz Range and 8mV/μm Sensitivity for Ultra-Low Frequency Measurements 0
