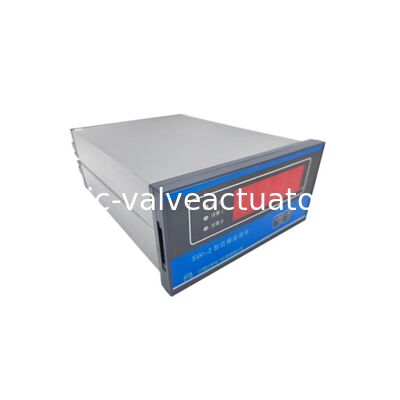

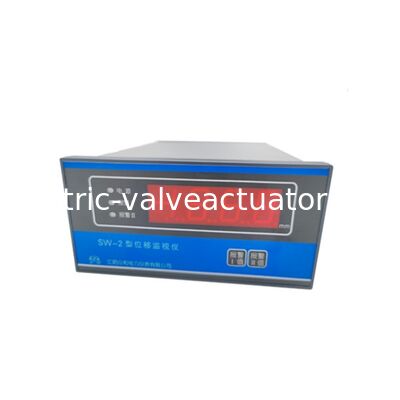

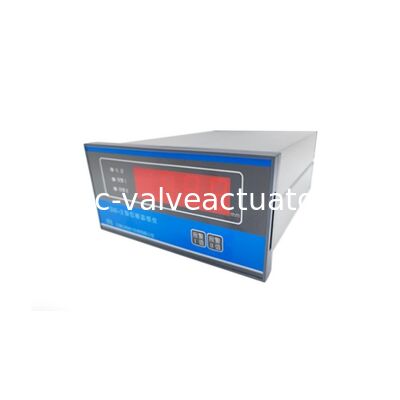

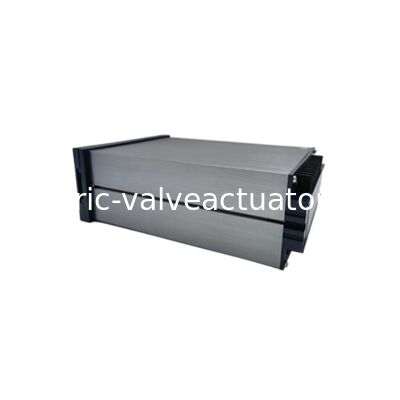

Zhong He SW-2 Displacement Monitor with LVDT Sensor | High Precision Digital Gauge

Name: Zhong He SW-2 Displacement Monitor with LVDT Sensor | High Precision Digital Gauge
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: SW-2
Price: 1.00 USD
Availability: InStock

Merknaam:	Zhong He
Modelnummer:	SW-2
MOQ:	1
Prijs:	Onderhandelbaar

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Weergavemodus:

Drie en een half cijferige LED

Verpakking Details:

Nieuwe originele doos

Productbeschrijving

Zhong He SW-2 Displacement Monitor with LVDT Sensor | High Precision Digital Gauge

Product Overview

The Zhong He SW-2 Displacement Monitor is a highly reliable monitoring and protection instrument designed for precision measurement applications. This system combines advanced digital gauge technology with LVDT sensors to deliver exceptional accuracy and performance in industrial environments.

Key Applications:
• Turbine cylinder expansion monitoring with TD-2 series LVDT sensors
• Steam turbine valve position monitoring with TDZ-1 and TD-1 series LVDT sensors
• Turbine oil tank level monitoring with UT-81 series LVDT sensors

System Capabilities

During measurement operations, the system provides current output proportional to displacement, enabling seamless integration with DCS, PLC systems, and paperless recorders. The instrument features two independently adjustable alarm settings that trigger relay switch contact outputs when displacement exceeds preset values.

Engineered for demanding industrial applications, this product offers high precision, stable performance, strong anti-interference capability, high reliability, and easy installation. It is widely applicable across power generation, machinery, chemical processing, and metallurgical industries.

Technical Specifications

Parameter	Specification
Input Signals	TDZ-1, TD-1, TD-2, UT-81 series linear differential transformer displacement sensors (LVDT)
Display	Three and a half digit LED digital display; Resolution: 0.1mm or 1mm
Measurement Range	0~1000mm (specific to connected sensor)
Current Output	Active DC 4~20 mA (±1.0% full scale accuracy, 500Ω max load) Active DC 0~10mA (±1.0% full scale accuracy, 1kΩ max load)
Alarm Settings	Adjustable within full measurement range
Alarm Output	Relay switch output (normally open contact) Capacity: AC250V/2A, DC28V/2A
Alarm Delay	0.1s, 1s, 3s (default: 1s, factory set)
Operating Environment	Temperature: 0~50℃ Storage: -10~60℃ Humidity: 20~90% RH (non-condensing) No corrosive or strong magnetic fields
Power Supply	(85~265) VAC, 50Hz; Power consumption <10W
Dimensions	160mm (W) × 80mm (H) × 225mm (D)
Installation	Cutout: 152mm × 76mm
