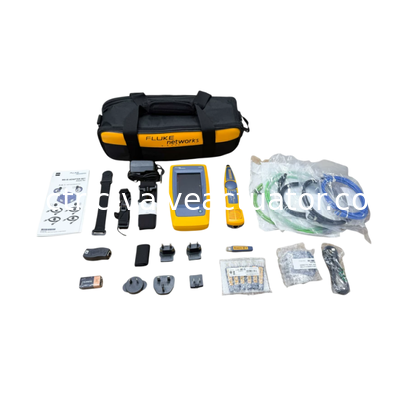

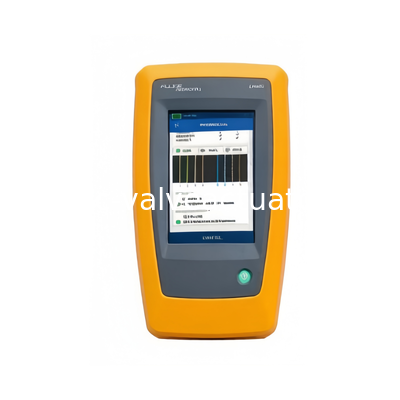

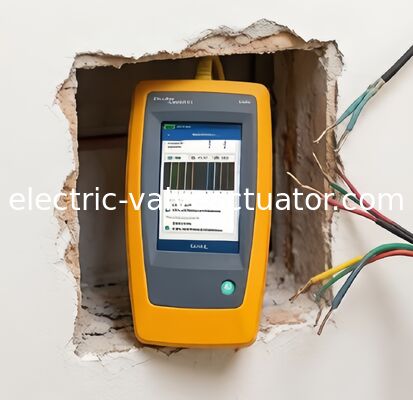

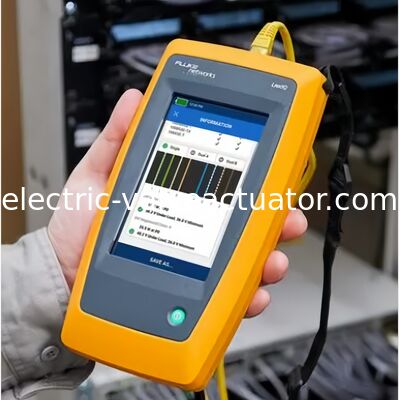

Fluke LIQ-100-IE Industrial Ethernet Cable & Network Tester | Industrial Network Analyzer

The Fluke LIQ-100-IE Industrial Network Analyzer is a comprehensive testing solution designed for industrial Ethernet cable and network diagnostics, providing reliable performance in demanding environments.

• Diagnostic Protocols: Link Layer Discovery Protocol (LLDP), Cisco Discovery Protocol (CDP), Fast Link Pulse (FLP)
• Recent Device Diagnostic Information: Switch Name, Port Number, VLAN Name, Nominal Data Rate, Nominal Duplex
• Power over Ethernet Compatibility: IEEE 802.3af/at/bt
• Hardware Negotiation: Characteristic Resistor
• Software Negotiation: LLDP/CDP
• Power over Ethernet Diagnostic Information: Nominal Power Rating (0 to 8), Nominal Available Power, Wire Pair, Single and Dual Characteristic Diagnostic Information
• Power over Ethernet Measurement: Load Voltage (V), Load Power (W)
• Port Indicator Flashing: Connected Port Indicator Flashing

• Test Port: Shielded 8-pin modular jack, accepts 8-pin modular (RJ45) connectors
• Automatic Test Debugging: 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX, 10BASE-T, Wiring Diagram Only
• Test Speed: 6 seconds (for lengths < 70 m)
• Cable Types: Balanced Twisted Pair Cabling, Unshielded Twisted Pair, Shielded Twisted Pair, 2 Pairs and/or 4 Pairs
• Diagram Test Only: Record Cabling Diagram, Length of Each Pair, Diagnose Pair Breakdown
• User-selectable Settings: T568A or T568B, Crossover Settings (Straight-through, Half-crossover, Full-crossover)
• Test Speed: 1 second (for lengths < 120 m)
• Maximum Length: 305 m (1000 ft)
• Nominal Propagation Speed (NVP): User-configurable
• Audio Generator: Digital audio compatible with Fluke Networks IntelliTone probes, Analog audio compatible with universal analog probes
• Remote ID Locator: Identifies up to 7 unique ports or office outlets using Remote ID terminals
