Fluke 700G series Portable Pressure Calibrator | Precision Pressure Gauge

Merknaam:	Fluke
Modelnummer:	700G-serie
MOQ:	1
Prijs:	Negotistical

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

OEM

Afmetingen:

12,7 x 11,4 x 3,7 cm (5 x 4,5 x 1,5 inch)

Verpakking Details:

Nieuwe originele doos

Productbeschrijving

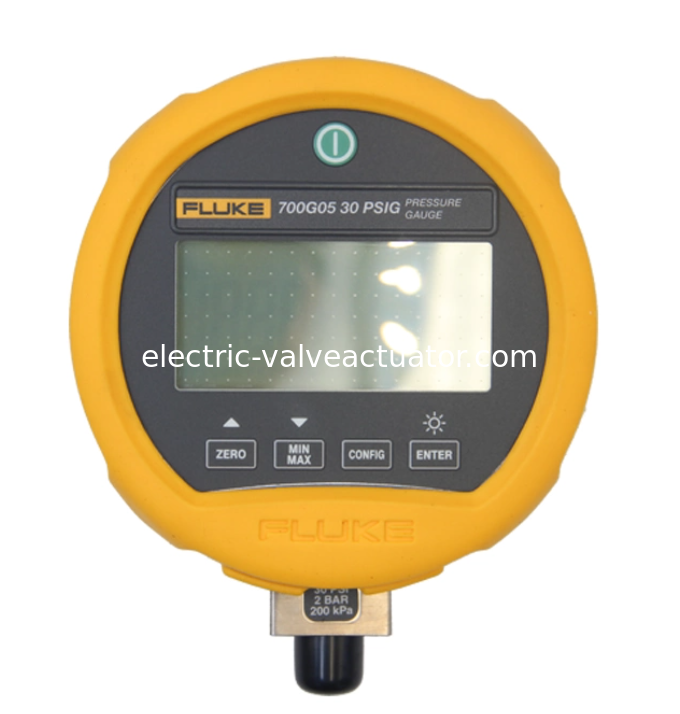

Fluke 700G series Portable Pressure Calibrator | Precision Pressure Gauge

The Fluke 700G is a professional portable pressure calibrator engineered for high-precision pressure measurement and on-site calibration. Built for field and laboratory use, this rugged gauge delivers outstanding reliability across diverse industrial scenarios.

It offers 23 optional models, covering a wide pressure range from ±10 inH₂O/20 mbar up to 10,000 psi/690 bar, fully adapting to various testing demands. Boasting a standard accuracy of 0.05% full scale, it ensures stable and trustworthy readings for pressure instrument verification.

Featuring compact design and user-friendly operation, the unit is easy to carry for mobile work. With certified CSA and ATEX safety ratings, it performs steadily even in harsh working environments. Ideal for calibrating pressure gauges and conducting accurate pressure tests, it is a practical and dependable tool for maintenance, inspection and calibration professionals.

Media Compatibility

10 inH2O, 1, 15, 30 psi: Any clean, dry, non-corrosive gas
100 psi, 300 psi, 500 psi, and 1000 psi: Any liquid or gas compatible with 316 stainless steel
From 1000 psi and above: Any non-flammable, non-toxic, non-explosive, non-oxidizing liquid or gas compatible with 316 stainless steel

Mechanical Specifications

Dimensions (H x W x D): 12.7 x 11.4 x 3.7 cm (5 x 4.5 x 1.5 in)
Pressure Connection: ¼ in NPT Male Connector
Housing/Weight: Cast ZNAL, 0.56 kg (1.22 lb), with housing
Display: 5-1/2 digits, 16.53 mm (0.65 in) high, 20-segment bar chart, 0 to 100%
Power: Three AA alkaline batteries
Battery Life: 1500 hours (continuous use) without backlight, 2000 hours at low sampling rates

Model available

FLUKE 700G01	FLUKE 700G02
FLUKE 700G04	FLUKE 700G05
FLUKE 700G06	FLUKE 700G07
FLUKE 700G08	FLUKE 700G10
FLUKE 700G27	FLUKE 700G29
FLUKE 700G30	FLUKE 700G31
FLUKE 700GA4	FLUKE 700GA5
FLUKE 700GA6	FLUKE 700GA27
FLUKE 700RG05	FLUKE 700RG06
FLUKE 700RG07	FLUKE 700RG08
FLUKE 700RG29	FLUKE 700RG30
FLUKE 700RG31
