Fluke TiS45 Infrared Thermal Camera for Industrial Inspection

Name: Fluke TiS45 Infrared Thermal Camera for Industrial Inspection
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: TiS45
Price: 210.00 USD
Availability: InStock

Merknaam:	Fluke
Modelnummer:	TiS45
MOQ:	1
Prijs:	Negotistical

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

OEM

Verpakking Details:

Nieuwe originele doos

Productbeschrijving

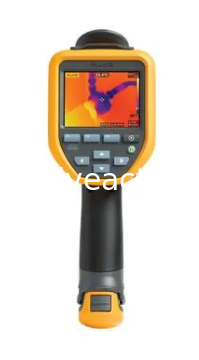

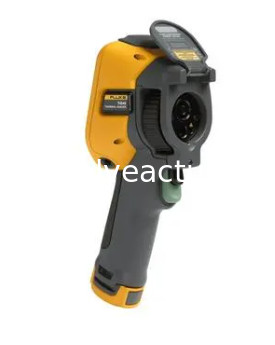

Fluke TiS45 Infrared Thermal Camera for Industrial Inspection

Product Overview

The Fluke TiS45 is a professional-grade infrared thermal camera designed specifically for industrial inspection applications. Featuring advanced thermal imaging technology and robust construction, it delivers reliable performance in demanding environments.

Key Specifications

Detector Resolution

160 x 120

Field of View

35.7° x 26.8°

IFOV (Spatial Resolution)

3.9 mRad

Distance to Spot Size Ratio

257:1

Thermal Sensitivity (NETD)

≤0.09 °C (90 mK)

Temperature Range

-20°C to +350°C (-4°F to 662°F)

Frame Rate

9 Hz

Focus System

Manual focus, minimum 0.15 m (6 in)

Advanced Features

IR-Fusion® Infrared-Visible Fusion Technology
AutoBlend™ Mode with 5 presets (0%, 25%, 50%, 75%, 100%)
Picture-in-Picture (PIP) with 5 presets
Built-in 5 MP digital camera for visible light imaging
Wireless connectivity with Fluke Connect® App compatibility
One-handed operation design
3.5-inch landscape LCD display (320 x 240)

Data Storage & Software

Storage System	Built-in 4GB Memory Card + 4GB Removable Micro SD Card
Image Formats	.bmp, .jpeg, .is2 (radioactive)
Analysis Software	SmartView® Software with comprehensive analysis and reporting
Export Formats	BMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF, TIFF
Wi-Fi Upload	Instant upload to Fluke Connect server

Power & Battery

Field-replaceable lithium-ion rechargeable battery
Battery life: 4+ hours
Charging time: 2.5 hours to full charge
AC operation: 100-240 VAC, 50/60 Hz
Five LED charge level indicators

Environmental & Safety

Operating Temperature	-10°C to +50°C (14°F to 122°F)
Storage Temperature	-20°C to +50°C (-4°F to 122°F)
Humidity	10% to 95% non-condensing
IP Rating	IP54 (dustproof and waterproof)
Drop Resistance	2-meter (6.5-foot) drop impact
Safety Standards	EN 61010-1, EN 60825-1, EN 60529, EN 62133

Additional Information

Warranty: 2 years standard (extended available)
Recommended calibration cycle: 2 years
Supported languages: 18 languages including English, Spanish, French, German, Chinese, Japanese, and more
Dimensions: 26.7 x 10.1 x 14.5 cm (10.5 x 4.0 x 5.7 in)
Weight: 0.72-0.77 kg (1.6-1.7 lb)

Note: Temperature measurement accuracy is ±2°C or 2% (whichever is greater) at 25°C nominal temperature. Uncalibrated below -10°C.
